Industrial Plumbing Camera Sewer Pipe Inspection 512hz Sonde Transmitter Locator Underground 512hz Receiver Pipeline Locator
- Warranty:1 year
- Customized support:customized logo
- Place of Origin:Shenzhen
- Brand Name:WOPSON
- Product Name:512hz Sewer Pipe Inspection Locator
- Receiver Frequency:512hz
- Power Source:6 AA Alkaline
- Size:512mm*110mm*118mm
- Battery Life:3-4 hours
- Weight:810g
- Certification:CE
Industrial pipe inspection camera 512hz transmitter and receiver

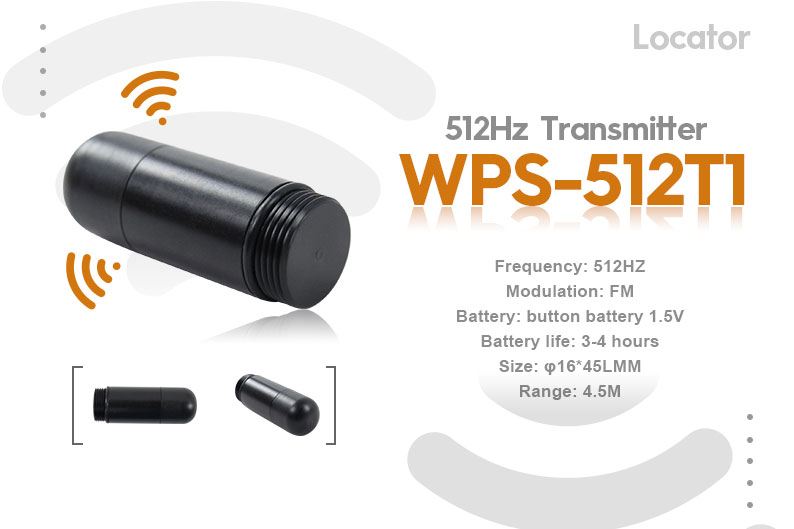

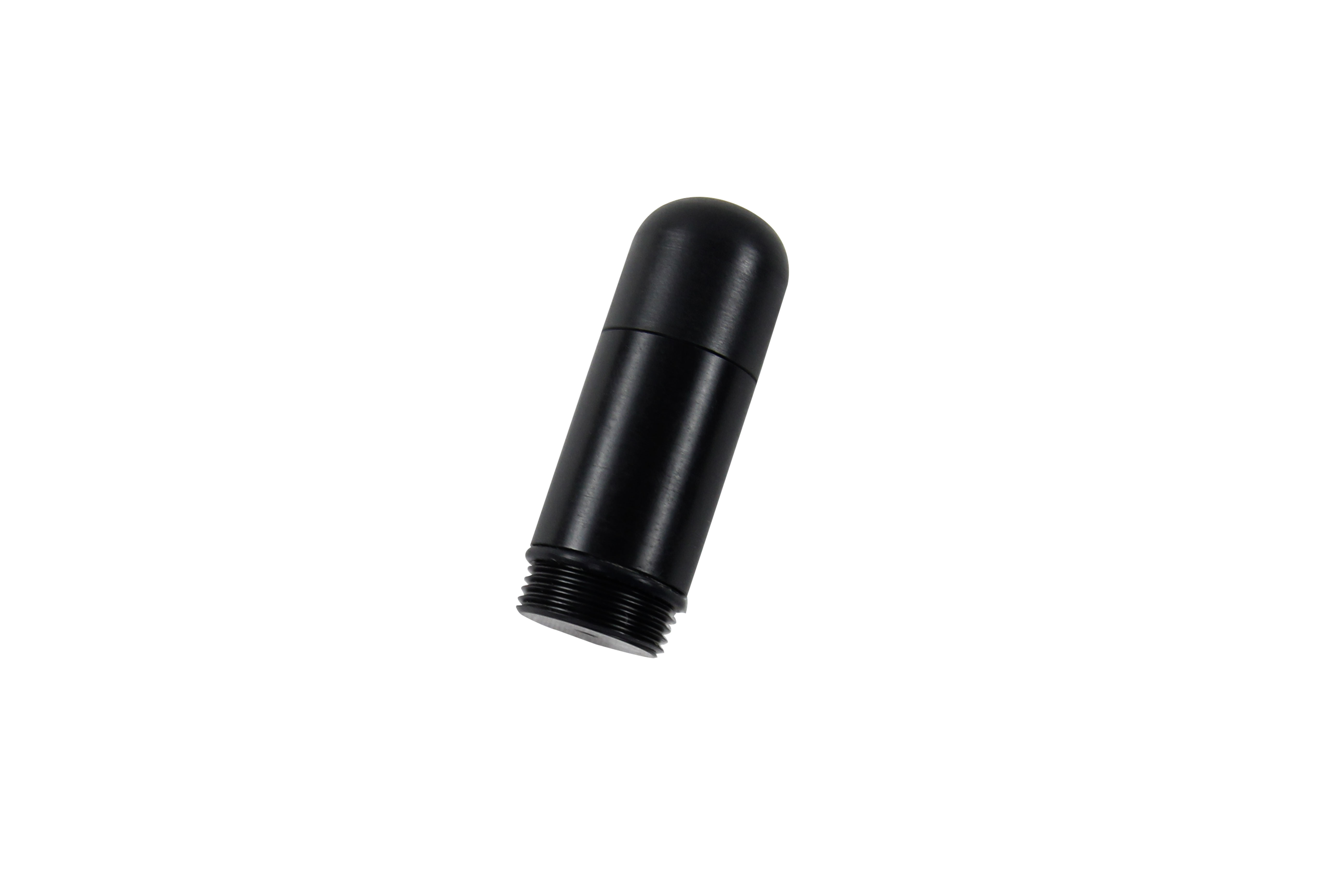

| 512hz Transmitter |
Will work with any 512hz receiver | |
Frequency:512Hz Battery life: 4 hours Size1: Φ22.5X48 mm Size2: Φ16x45mm Range(cast iron) : up to 10ft Range(non-metallic): up to 15ft Minimum line size: 1” Minimum P-trap size: 2” Thread: Metric 15mm/ Pitch 1mm
| |

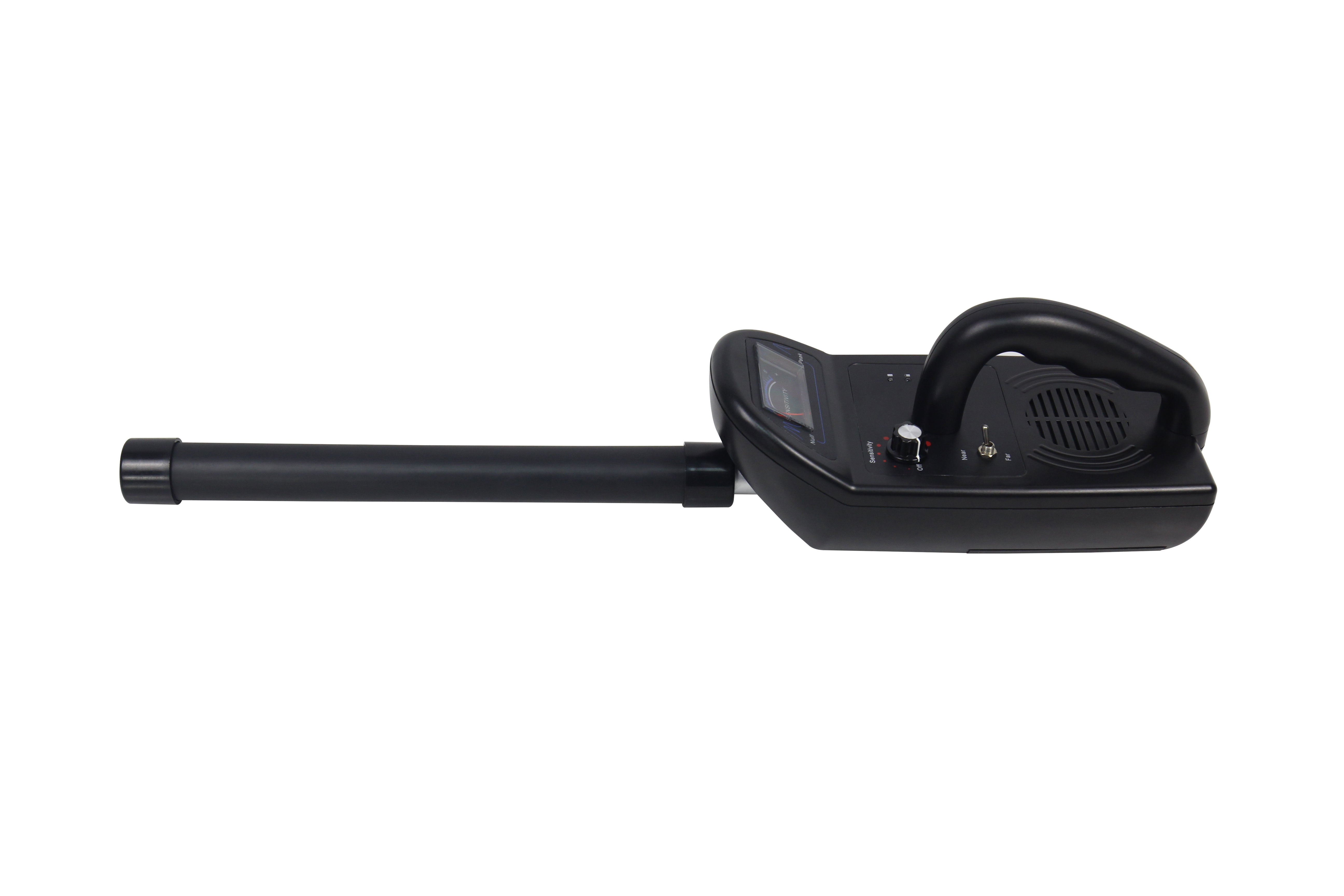

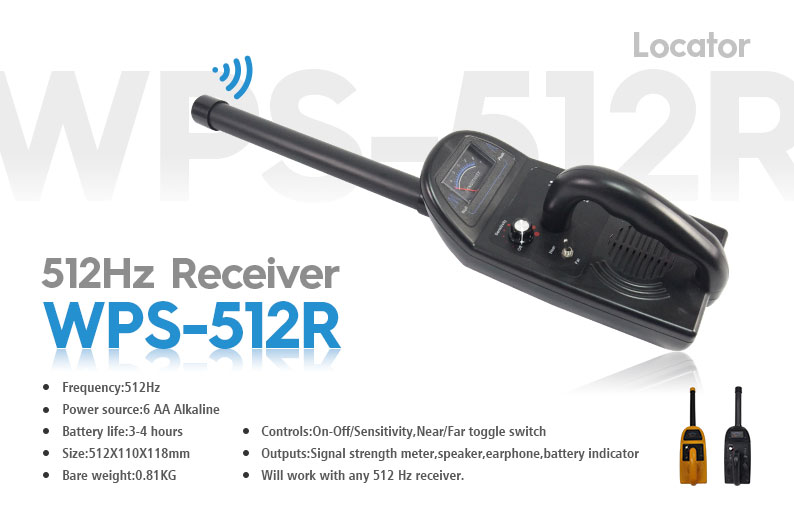

| 512hz Receiver |
The transmitters is ideal for locating in small cast iron and non-metallic lines P-traps,or ginding septic tanks.
| |
Frequency:512Hz Battery life:3-4 hours Size:512X110X118mm Weight:810G Operating temperature:-20to+50C Controls:On-Off/Sensitivity,Near/Far toggle switch Outputs:Signal strength meter,speaker,earphone,battery indicator
|
HOW TO WORK?
1 The transmitter or camera head with transmitter is pushed into the block or leaking pipe, send 512hz signal.
2 The 512hz receiver receives the signal, locate according to the pointer&sound&sensitivity.
512hz Receiver work with camera built in transmitter
MORE PICTRUES
PACKING
1 pc carton
Size : 59*26*18cm
Gross weight: 3.8KG Volume weight: 6KG
