Long range mini wireless 512hz locator transmitter and sonde
- Warranty:1 year
- Customized support:customized logo
- Place of Origin:Guangdong, China
- Brand Name:WOPSON
- Certification::CE,FCC,Rohs
- 512hz locator transmitter and sonde:Long range mini wireless 512hz locator transmitter and sonde
- used for:underground,underwater,drain,sewer,pipe,duct,tube,heating,inspection
We are professional manufacturer of pipe inspection camera and pipe locator
Long range mini wireless 512hz locator transmitter and sonde
SPECIFICATION
| TRANSMITTER |
Will work with any 512 Hz receiver. | |
Frequency:512Hz Battery life: 4 hours Size1: Φ22.5X48 mm Size2: Φ16x45mm Range(cast iron) : up to 10ft Range(non-metallic): up to 15ft Minimum line size: 1” Minimum P-trap size: 2” Thread: Metric 15mm/ Pitch 1mm |
| RECEIVER |

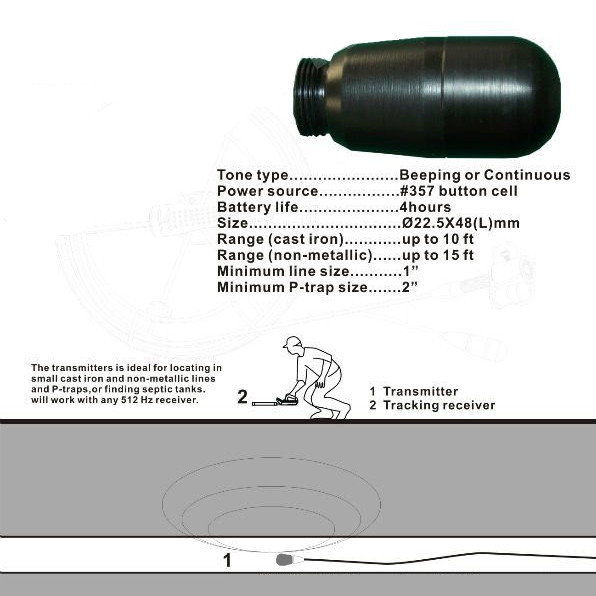

The transmitters is ideal for locating in small cast iron and non-metallic lines P-traps,or ginding septic tanks. | |
Frequency:512Hz Battery life:3-4 hours Size:512X110X118mm Weight:810G Operating temperature:-20to+50°C Controls:On-Off/Sensitivity,Near/Far toggle switch Outputs:Signal strength meter,speaker,earphone,battery indicator |
HOW TO WORK?
1 The transmitter or camera head with transmitter is pushed into the block or leaking pipe, send 512hz signal.

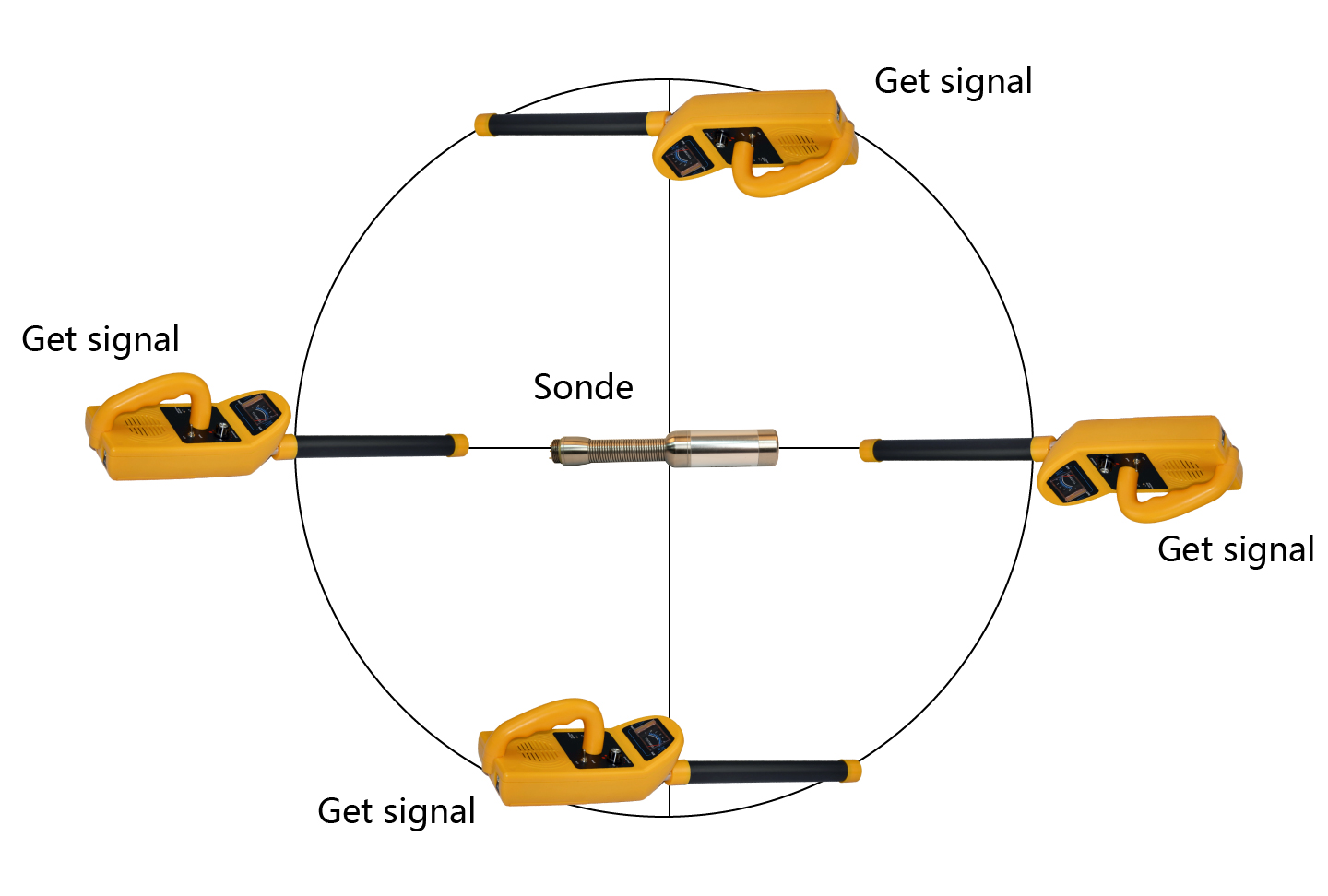

2 The 512hz receiver receives the signal, locate according to the pointer&sound&sensitivity.
512hz Receiver work with camera built in transmitter

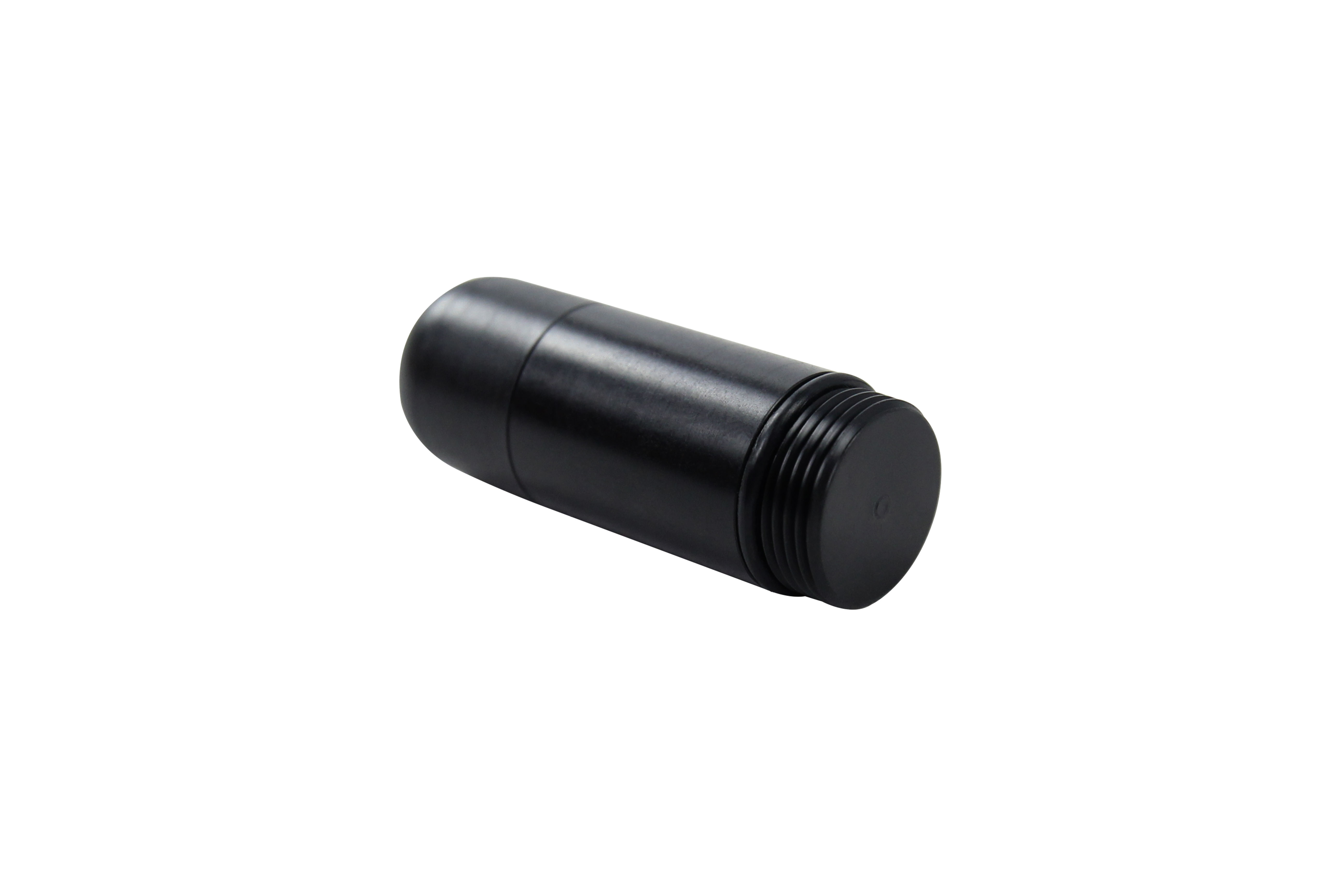

About 512hz transmitter
Work with any standard 512hz Receiver!
PACKING
1 pc carton
Size : 59*26*18cm
Gross weight: 3.8KG
Volume weight: 6KG

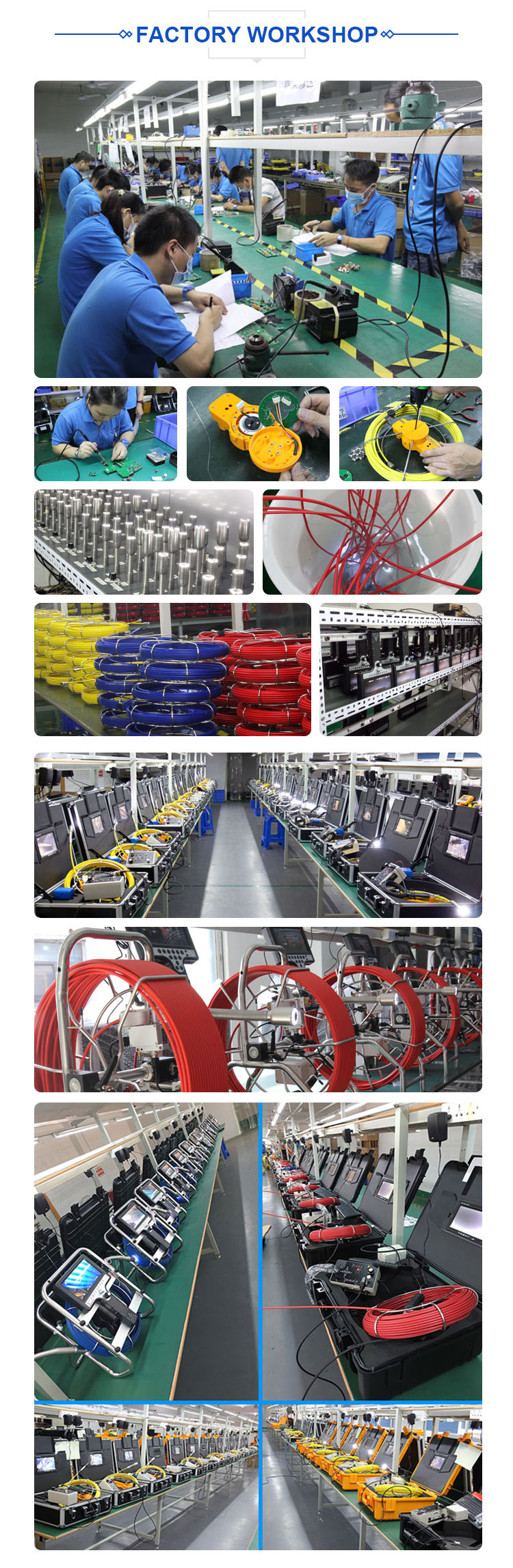

FACTORY
EXHIBITION
CERTIFICATE
Long range mini wireless 512hz locator transmitter and sonde
Also can be used in:Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Water Leak, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Colling Lines, Attics, Wells, Underwater, Maintenance of the Plumbing and Wiring Behind Walls, Channel and Drain Lines, Sewage Tanks, Ventilation Shafts, Civil Engineering, Electrics Installation Shafts, Cavities, Rescue Areas.
