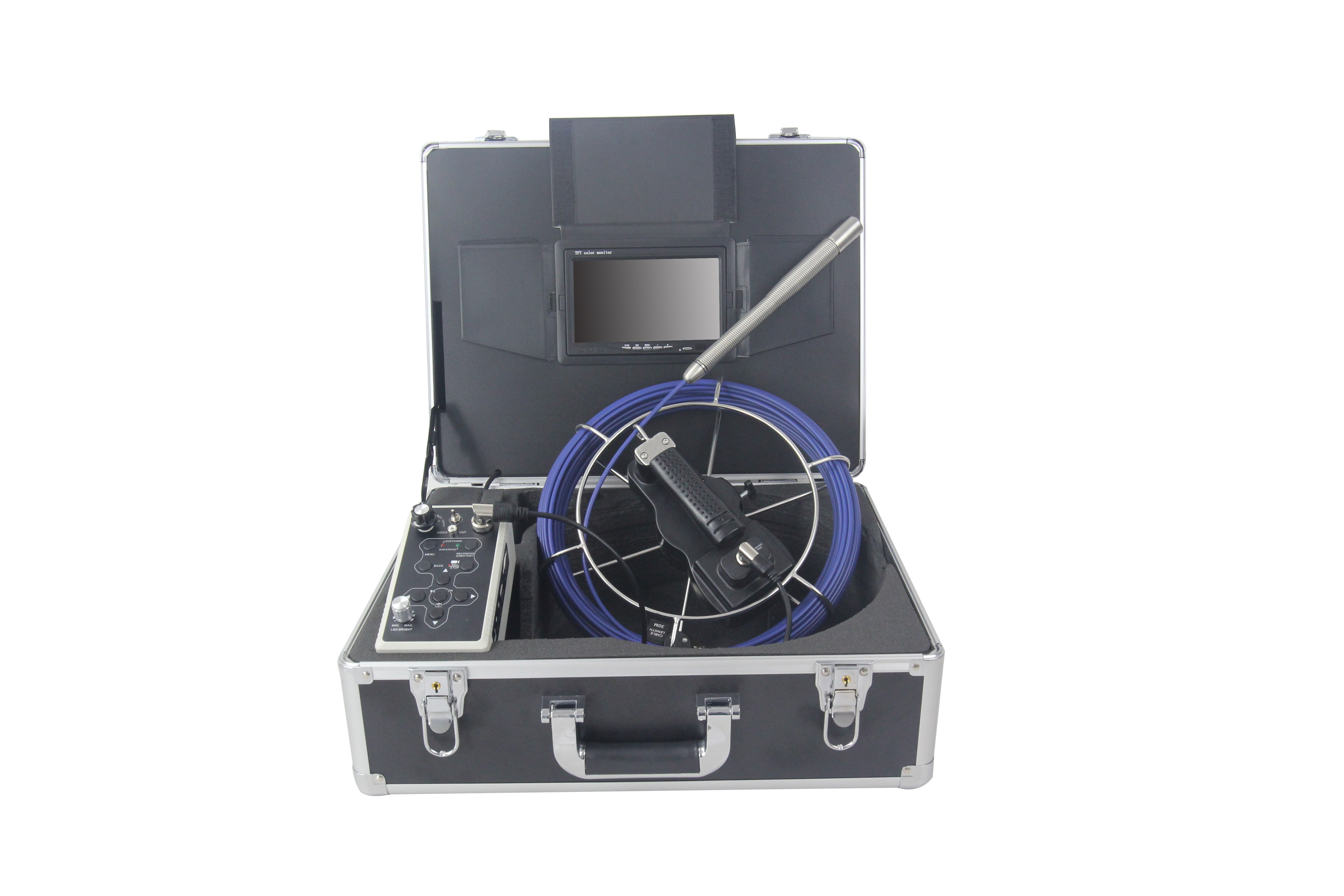

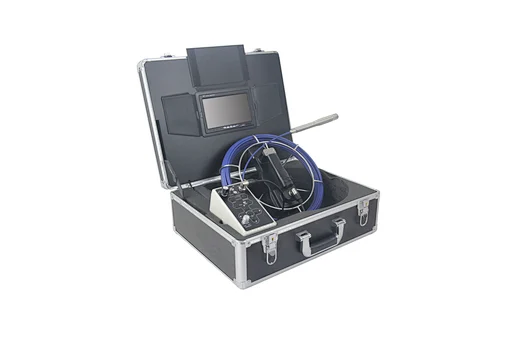

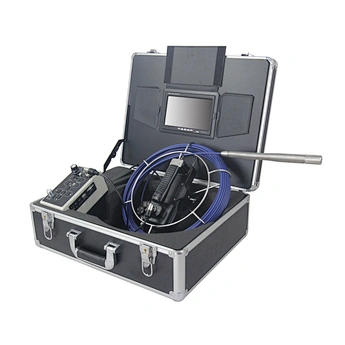

Newly 23MM Self-levelling 512Hz transmitter head 50M cable CCTV Camera System pipe inspection camera sewer camera
- Warranty:1 Year
- Sensor:CCD, 1/4 Inch
- Network:TCP
- Function:Waterproof / Weatherproof, Wide Angle, Vandal-proof
- Data Storage Options:SD Card, DVR
- Application:Indoor, Outdoor
- Customized support:Online technical support, Customized logo, OEM, ODM, Software reengineering
- Place of Origin:Guangdong, China
- Brand Name:WOPSON
- Model Number:WPS-A1-C23AB
- Video Compression Format:H.264
- Resolution:720P
- Special Features:Waterproof / Weatherproof, Vandal-proof
- Lens:Sapphire Glass
- View Range:120 Degree
- Camera Pixels:PAL:720*576/NTSC:720*480
- Monitor:7"or15"Col TFT (Pixels:1440X234)
- Cable Length:20M/30M/50M(5MM Fiberglass)
- DVR:8G SD Card Memory DVR
- Certification:CE/FCC/Rohs
Specification

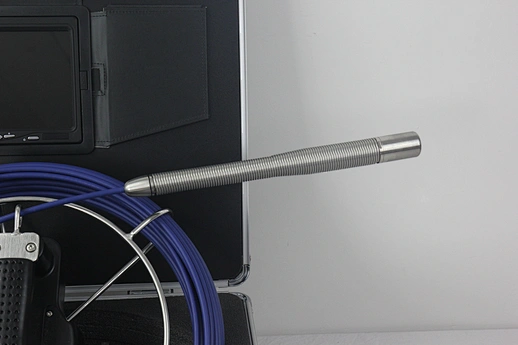

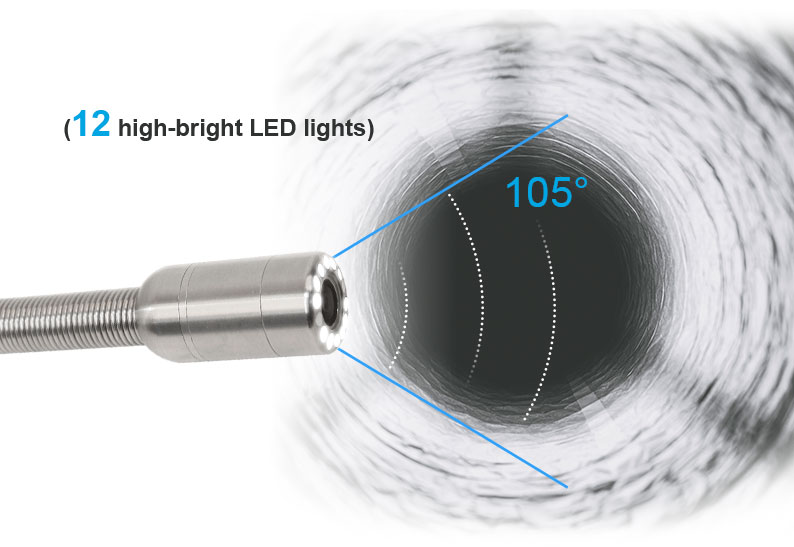

Camera & skid: Camera size: ø23mm*240mm Video resolution: 720*576 Leds: 12pcs View angle: 105° Waterproof: IP68 Skids: 40/80mm Suitable pipe diameter: 30-200mm 512Hz transmitter Self-levelling | Control box: Storage medium: 8G SD card (max 256G) & USB stick DVR total pixels: 720*576 Movie format: AVI Photo format: JPEG 8 levels digital zoom Charger time: 5 hours Running time: ≥7 hours |
Cable reel: Cable size: ø330*110mmCable length: 20mCable diameter: ø5mmMax length: 50m
| Display screen: Screen size:7inch TFT color screen Screen pixels: 800*480 |
Case: Size: L477*W390*H180mm Case material: Aluminum Alloy |

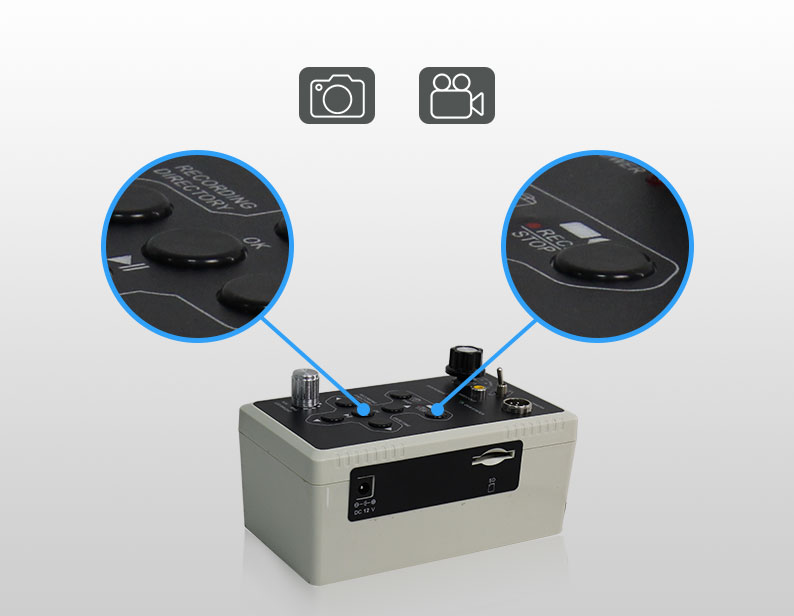

One-touching
video / audio recording and image capture

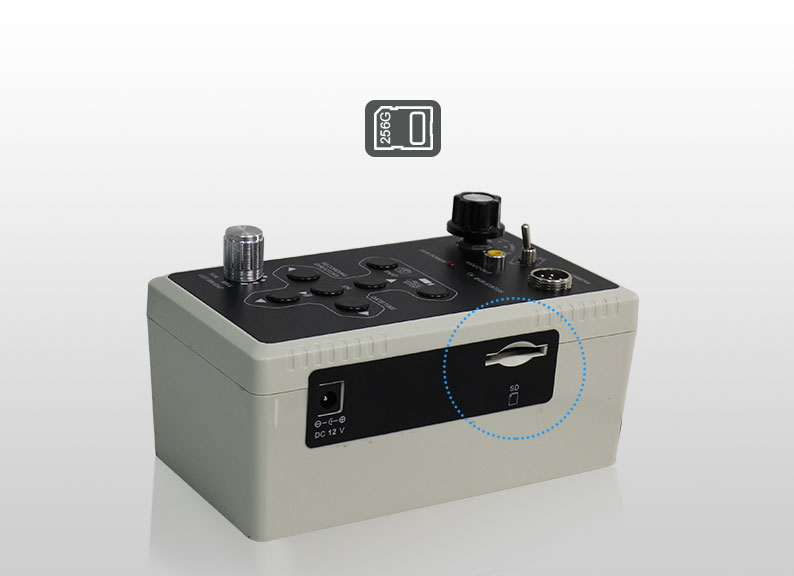

Supporting max 256G SD card

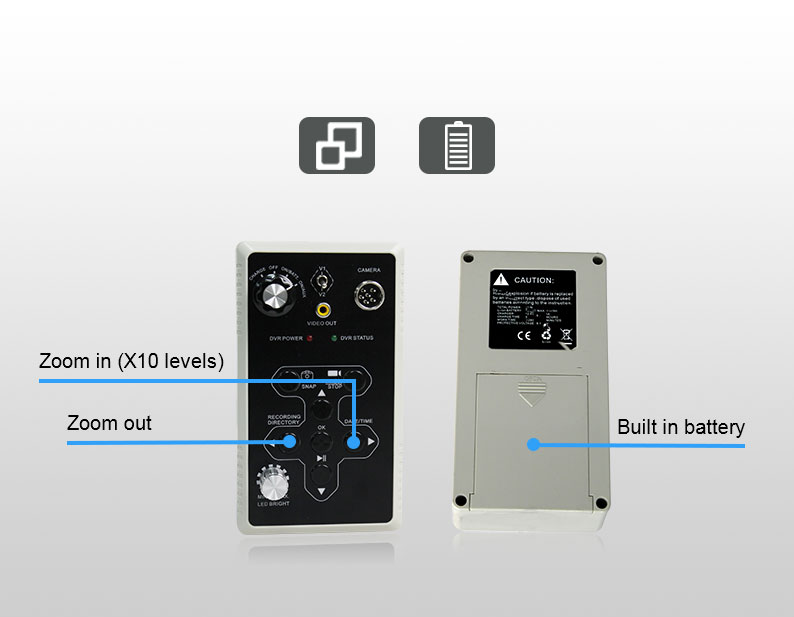

Zoom function (x10 levels) & 7-hour battery life
Optional

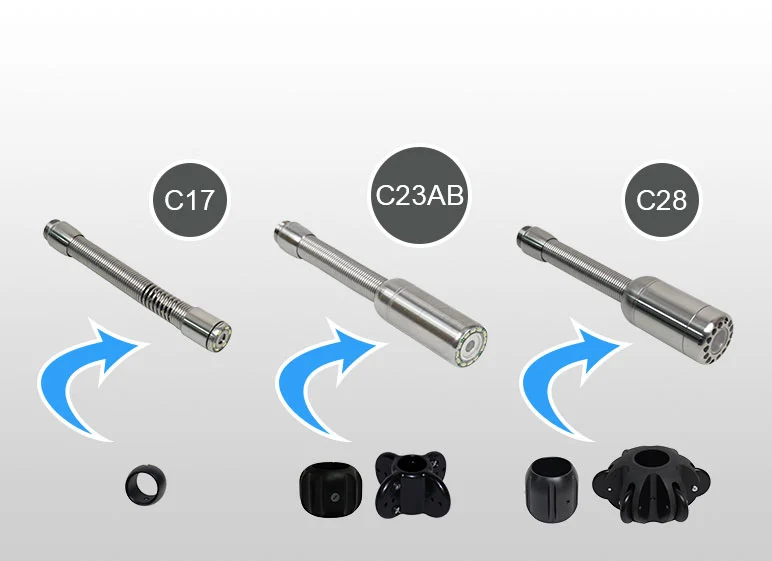

Camera heads(720*576 waterproof IP68)
Model | Size | LEDs | View angle | Suitable pipe diameter | Other function |
C17 | ø17*142mm | 6pcs | 60° | 30-60mm | none |
C23AB | ø23*160mm | 12pcs | 60° | 30-150mm | self-levelling |
C28 | ø28*156mm | 12pcs | 105° | 70-200mm | self-levelling 512Hz transmitter(optional) |

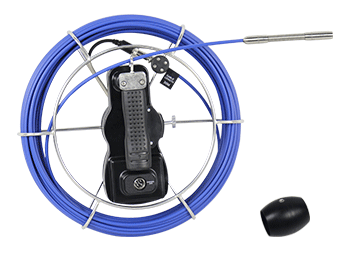

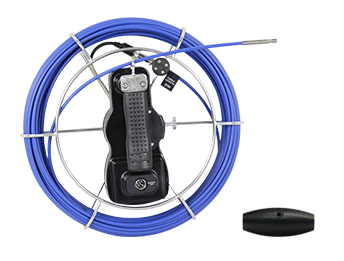

Cable & camera head
X-151CJ-C12 | X-156CJ |
Size: ø12*115mm View angle: 65° Waterproof: IP68 Leds: 6pcs Suitable pipe diameter: 20-45mm |
Size: ø6*48mm View angle: 60° Waterproof: IP66 Leds: 4pcs Suitable pipe diameter: 10-40mm |
512R Receiver & transmitter
512R | 512T1 | 512T |
Size: 512l*110w*118hmm Range: 4.5m
|
Size: ø16*45lmm Range:4.5m |
Size: ø22.5*48lmm Range: 5m
|

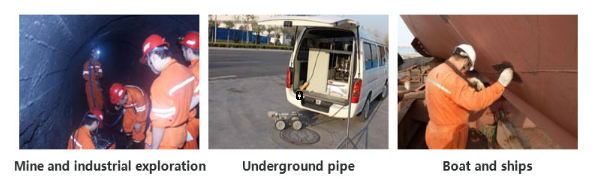

Application field
Introduction
FAQ
1.Q:If i order today, how long it takes for the shipment?
A: Our delivery time is about 3-5 days after got your payment and the shipping time is about 4-10 days upon your choose the shipment.
2.Q:What’s the payment terms?
A:We accept T/T, paypal,western union,Welcome to use the Alibaba Trade Assurance .
3.Q:Could you offer wholesale price?
A: Yes, of course. If you order in large quantity, we can give you the wholesale price and more discount
4.Q:Can you give me best shipping cost?
A: Sure, we give our customer best shipping cost and fast shipping time. Usually we use DHL, UPS, Fedex, TNT to keep the good quality.
5.Q:Are the quality of your product guaranteed?
A: We provide one year limited mfg. warranty, We have QC to control the quality one by one. So do not worry about the quality. If you got a defective item, we can refund your money or send you new item as compensation.
6.Q:I'm shopping at your company at the first time, how can I trust you?
A: We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or shop anytime you like.
7.Q:I'm a potential customer, can I get some free samples first?
A: We can provide a sample to you for test before give us a big order.but so sorry to tell you that there are no free samples in our company.
8.OEM&ODM service.
OEM/ODM service is welcome,we will provide all the details to you during the mass production.
Customize your mould according to your need.
your requirement and complaints are highly respected.
necessary test and certification can be obtained as you request.

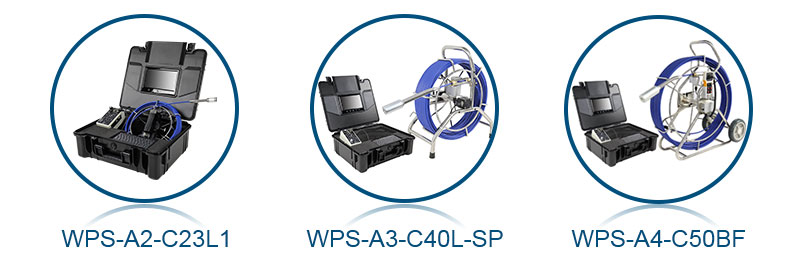

Related products
A-----Simplified series

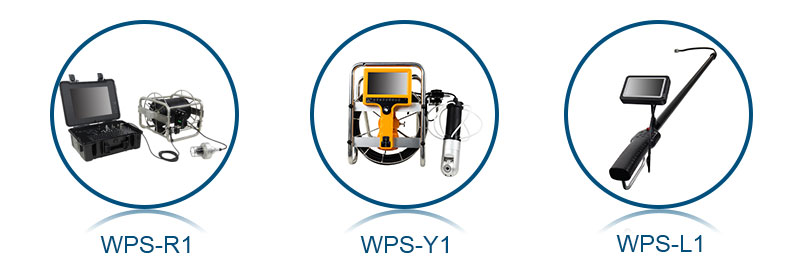

Other series
